CNC PCB
Stack
Hardware: STM32F4, Altium Designer, PCB.
Story

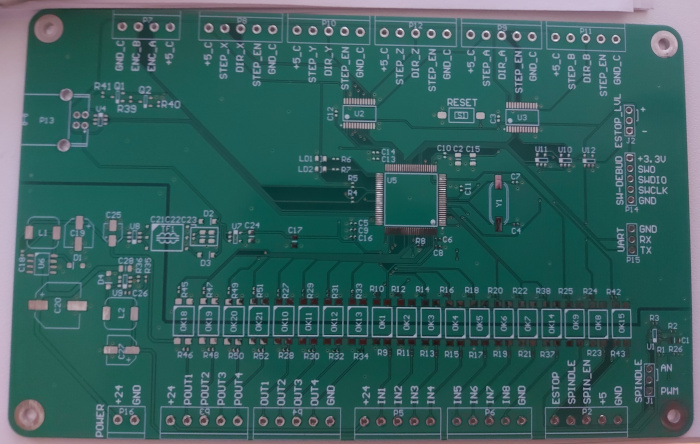

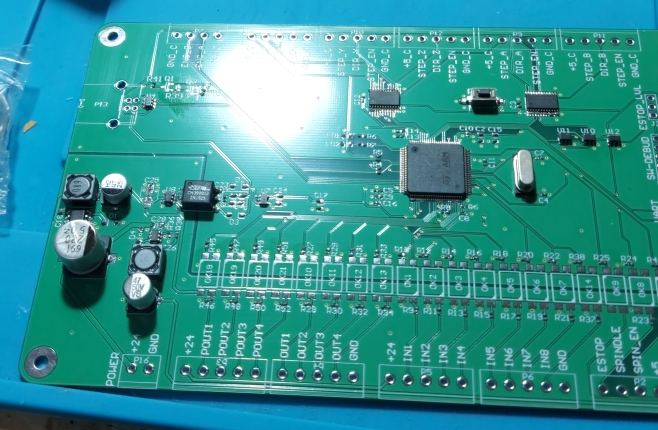

In this project, I developed a printed circuit board for a CNC machine. The board is controlled by the stm32f4 microcontroller and there are completely galvanically isolated outputs for the motor control layer. This scheme can be viewed on the git (made in Altium Designer).
